1. Technical parameters:
Project | Parameters |
Total length | 2100±20 mm; |
Table panel width | 500±20 mm; |
Minimum height | 700±20 mm; |
Lift stroke | (300±20) mm |
Head section | Removable, fold up 45o±2 and down 90o±2° |
Dorsal section | Top fold 70o±2, bottom fold 18o±2°; |
Leg plate | Split-legged, removable, top fold 20°, bottom fold 90°, horizontal abduction 90° |
Waist bridge (Central pelvic section) | mechanical drive, Lift stroke ≥120mm |
Longitudinal tilt | Head tilt down: 20°±2° |
Foot tilt down: 30°±2° | |
Roll Angle | Left roll: 20°±2° |
Right roll: 20°±2° | |
Front and back pan stroke | 300±20mm |
Flex/reflex positions | 210°/70° |
load capacity | 200kg |

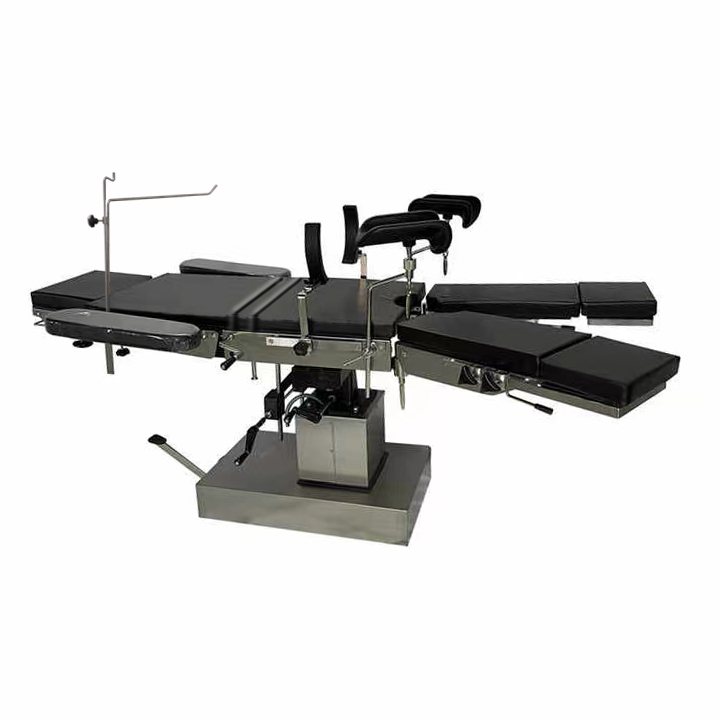

2. Product Introduction:
This product is used in hospital operating room for head, neck, chest and abdominal, perineum and limbs surgery and obstetrics and gynecology, ophthalmology, ENT, orthopedics and other operations.
3. The product has unique advantages:
1). The Angle adjustment of the backplane and leg plate of the comprehensive operating table is realized by the hand-operated worm, gear and rack mechanism.
2). The table and cover material can be selected according to user needs of high-quality cold-tied carbon steel spray or advanced stainless steel.
3). The use of oil pump hydraulic lifting, the required position adjustment during the operation are manipulated on both sides of the table.
4). With translation function.
4. Basic configuration list:
Serial Number | Accessory name | Quantity | Units |
1 | Operating table bed body | 1 | Set |
2 | Mattress | 1 | Set |
3 | Hand fixator (1 pair): | 1 | set |
4 | Arm support with mattress (1 pair) | 1 | set |
5 | Torso and leg fixator: | 1 | set |
6 | Side support | 1 | set |
7 | Support roller, horizontal: | 1 | set |
8 | Support roller, vertical: | 1 | set |
9 | iliopsoas roller: | 1 | pcs |
10 | Height-adjustable anesthesia shield. | 1 | set |
11 | Arm support for lateral position. | 1 | set |
12 | Patient transfer device (rollboard) | 1 | pcs |
13 | Product Certificate/Warranty card/receipt | 1 | Set |
14 | Instruction manual | 1 | Set |
